| Feature Highlight |
| Industrial design integration |
| Customized and flexible hardware and software expansion |
| Dual battery power redundancy |
| With general power and communication port |
| Portable professional suitcase |
| Support List |
| Customized Ground Station & SDK support |
| Zenmuse X3/Z3/XT/X5/X5R/Z30 Camera |
| Searchlight, Megaphone, Drop Tank |
| D-RTK, Manifold, ClairVoy, Ultrasonic Height Measurement Unit, Extension Tripod |
| 3rd Party devices |

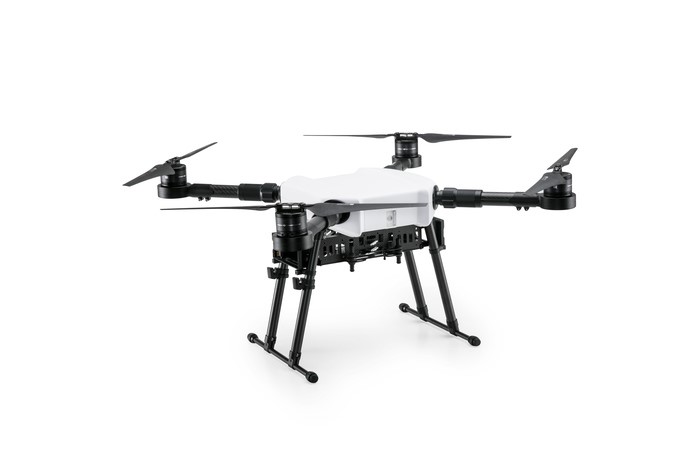

DJI WIND Series redefine industrial UAV application. This enterprise-grade drone is a integrated flying platform specifically designed for professional industrial applications.
It features core DJI’s technologies like A3 flight controller, Propulsion system and D-RTK. It’s composite carbon fiber frame is more elegant and add higher strength, visual refinement and lighter weight. With its unique platform design, the wind is easily modifiable.
DJI WIND Series compatible with DJI Ground Station Pro app which allows you to plan and execute a flight route. It supports multi-mode real-time tracking and positioning. Quickly access critical information with Lightbridge and D-RTK.
DJI WIND is safe, reliable and effective. The drone is dust-proof and water-proof. This allows you to fly harsh conditions. Wind can resist rainfall during extreme rainstorms.
DJI WIND is compatible with number of DJI accessories and add-ons such as Zenmuse X3/X5/X5R/Z3 Cameras, Z30 Zoom Camera, XT Thermal Camera, Searchlight, Speaker, Manifold,4G Unit, ClairVoy (Drone tracking & monitoring unit) and Ground Station app.
SPECIFICATION
| Diagonal Wheelbase | 722mm |
| Weight (with Two TB47D battery) | 4kg |
| Weight (with Two TB48D battery) | 4.2kg |
| Max Takeoff Weight | 6kg |
| Max Payload Weight (TB47D x2) | 1.96kg |
| Max Payload Weight (TB48D x2) | 1.74kg |
| Propulsion System | E1200 Customized version |
| 3Party Equipment Installation | Quick-release Platform |
| GPS Adoption method | Inside |
| Hovering Time | 32min (TB48Dx2)
27min (TB47Dx2) |
| Hovering Accuracy | Vertical：±0.5 m,
Horizontal：±2.5 m |
| Max Angular Velocity | 150°/s |
| Max Pitch Angle | 35° |
| Max Ascent Speed | 5 m/s |
| Max Descent Speed | 4 m/s |
| Max Wind Resistance | 12m/s |
| Max Speed | 22 m/s |
| Dimension of Drone | 562mm*562mm*300mm |
| Dimension of Suitcase | 663mm*657mm*401mm |
