DJI WIND 2

Feature Highlight
 Waterproof & Dustproof
 2.5 kg Payload
Strong and more stable
SDK Development & Customization
Beyond Visual Range Automatic Control
Professional, portable and easy
Support List
Customized Ground Station
Zenmuse X3/Z3/XT/X5/X5R/Z30 Camera
Searchlight, Megaphone, Drop Tank
D-RTK, Manifold, ClairVoy, Ultrasonic Height Measurement Unit, Extension Tripod
3rd Party devices

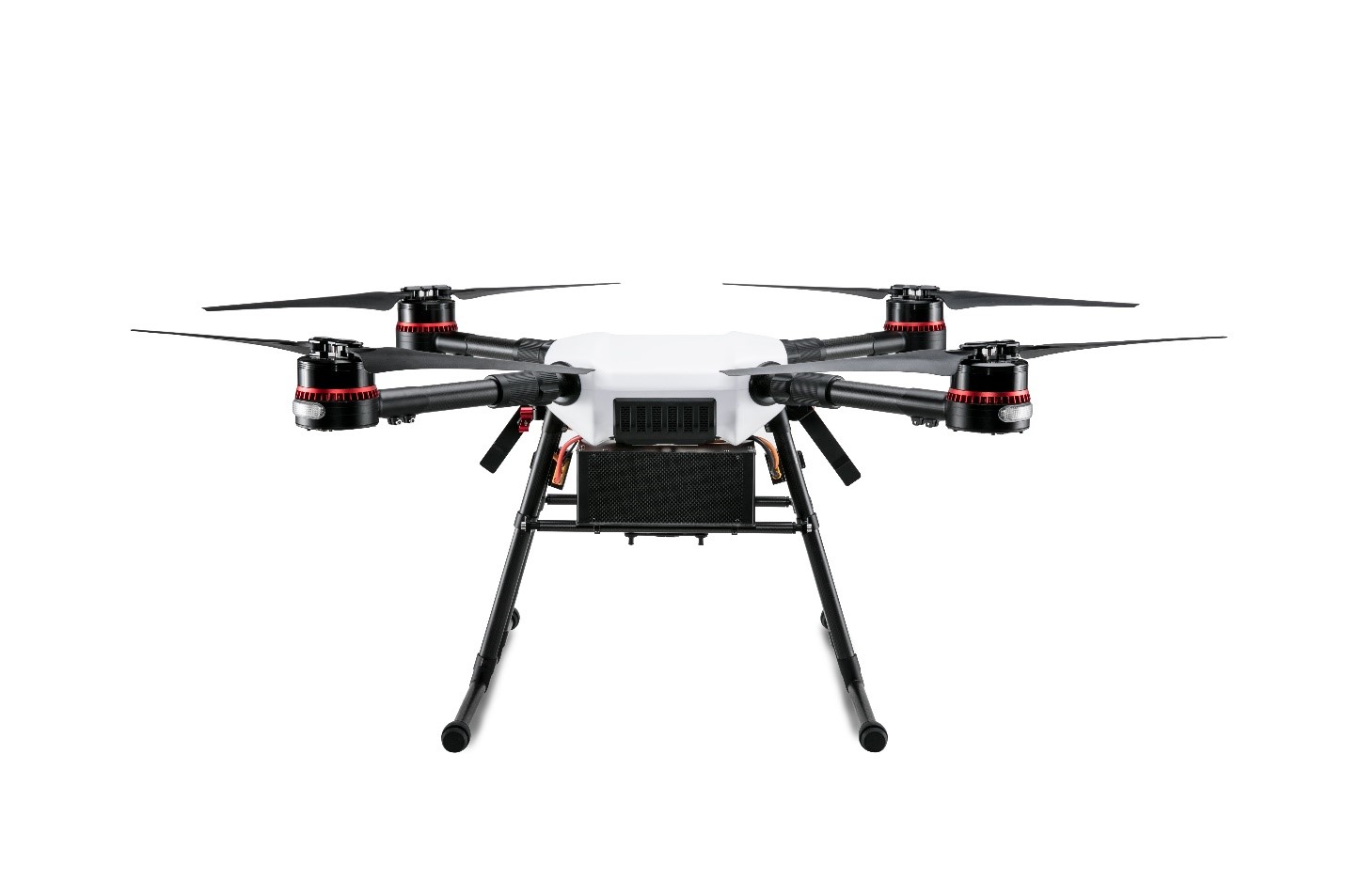

DJI WIND Series redefine industrial UAV application. This enterprise-grade drone is a integrated flying platform specifically designed for professional industrial applications.

It features core DJI’s technologies like A3 flight controller, Propulsion system and D-RTK. It’s composite carbon fiber frame is more elegant and add higher strength, visual refinement and lighter weight. With its unique platform design, the wind is easily modifiable.

DJI WIND Series compatible with DJI Ground Station Pro app which allows you to plan and execute a flight route. It supports multi-mode real-time tracking and positioning. Quickly access critical information with Lightbridge and D-RTK.

DJI WIND is safe, reliable and effective. The drone is dust-proof and water-proof. This allows you to fly harsh conditions. Wind can resist rainfall during extreme rainstorms.

DJI WIND is compatible with number of DJI accessories and add-ons such as Zenmuse X3/X5/X5R/Z3 Cameras, Z30 Zoom Camera, XT Thermal Camera, Searchlight, Speaker, Manifold,4G Unit, ClairVoy (Drone tracking & monitoring unit) and Ground Station app.

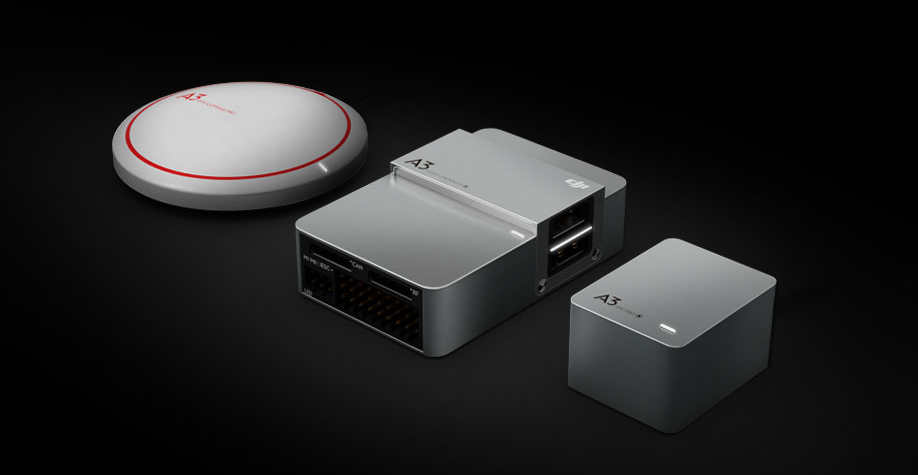

DJI A3 Flight Controller

Combining ultimate reliability with accurate flight control, the brand-new A3 series of flight controllers is ideal for demanding industrial and cinematic applications where reliability and customization are essential.

MG-12000 Battery

The Wind 2 uses an intelligent battery with a capacity of 12000mAh. A high-strength protective shell and dampers are applied outside the battery, and the cables are also well-protected for safety and reliability. In addition, the battery provides more stable voltage, extending its lifespan.

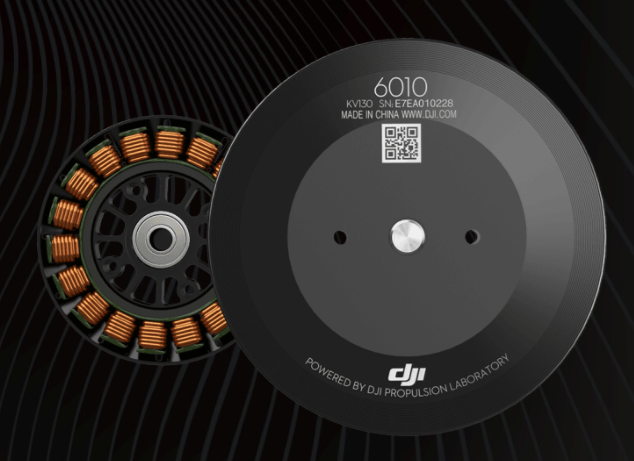

E2000 Tuned Propulsion System

The E2000 is DJI’s first tuned propulsion system specially engineered for industrial applications and aerial imagery. Using a combination of 6010 motors, 1240S/X ESCs, and R2170 propellers, the E2000 is designed to carry payloads of 1800–2500g per axis, giving it the power to carry substantial add-ons and advanced imaging equipment.



The motor bearings are fully sealed to prevent fluids like rain, pesticide, and salt spray from entering and causing corrosion. A special surface coating applied to the stator also greatly improves its ability to withstand rusting.

The ESC is based on a sine-wave drive architecture and advanced, patented algorithms that help the motor respond quickly and precisely to the pilot’s controls.

SPECS

Diagonal Wheelbase 805mm
Weight (with MG-12000 battery) 7.8 kg
Max Takeoff Weight 10 kg
Max Payload Weight 2.2 kg
Propulsion System E2000 Customized version
3Party Equipment Installation Quick-release Platform
Basic Configuration A3x1, IMUx2, GPSx1
Fuselage Protection Level IP56
Suite-case Protection Level MIL-STD-810E
Hovering Time 40min
Hovering Accuracy Vertical:±0.5 m,

Horizontal:±1.5 m

Max Angular Velocity 150°/s
Max Pitch Angle 25°
Max Ascent Speed 5 m/s
Max Descent Speed 3 m/s
Max Wind Resistance 10m/s
Max Speed 18 m/s
Dimension of Drone 650mm*650mm*390mm
Dimension of Suitcase 850mm*730mm*430mm
